ADC moving-iron cartridge has "low" output
I have two identical ADC gold-body XLM-III carts from the late 70s. I purch'd them used, as part of two turntables that were each purchased from different parts of the US. Each cart has a different model of stylus (XLM-III and QLN-2) , and styluses can be interchanged.
The MI series from ADC should output 5.5mV, which I have not measured. However, BOTH these carts are challenged wrt output volume. Not only do I have to crank up the vol. more than 1/3 above other carts, but the sonics are a bit "small" and not "full bodied". It might be due to weakening permanent magnetism -- these are both getting close to 50 yrs old .
The perm. magnet in ADC moving iron series is mounted in the removable stylus, just above the stylus/cantilever assemble.
Not sure what else the low volume may be due to??? These are my my only MI carts in my collection. Anyone know more?
OVER-information can lead to wild speculation. I gave this forum all that was important. The rest should be assumed as "all else held equal". Perhaps others have more USEFUL responses. |

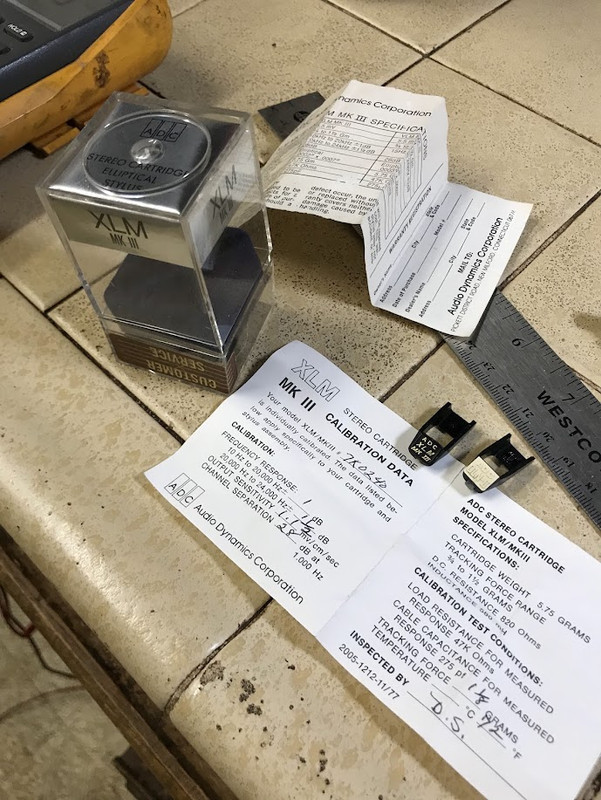

Good call on the stiff suspension, as this can be an issue. One of XLM-III stylii had this issue, the other did not. The stiff sus. also leads to DISTORTED sonics. But I was able to mostly restore with a bit of WD40 (see the AK forum for this). About 5.5mV ... I have the orig. box.manual/spec sheet: https://i.postimg.cc/vZ17dbdr/IMG-9864.jpg
|
